液压产生装置
Hydraulic pressure generating device
- Publication number
- 121443492
- Publication date
- 2026-01-30
- Application number
- 202480044426.9
- Application date
- 2024-07-04
- First applicant
- 株式会社爱德克斯
- First inventor
- 立花侑也
- Claims
- 3
- Independent claims
- 1
- Figures
- 4
- Inventors
- 2

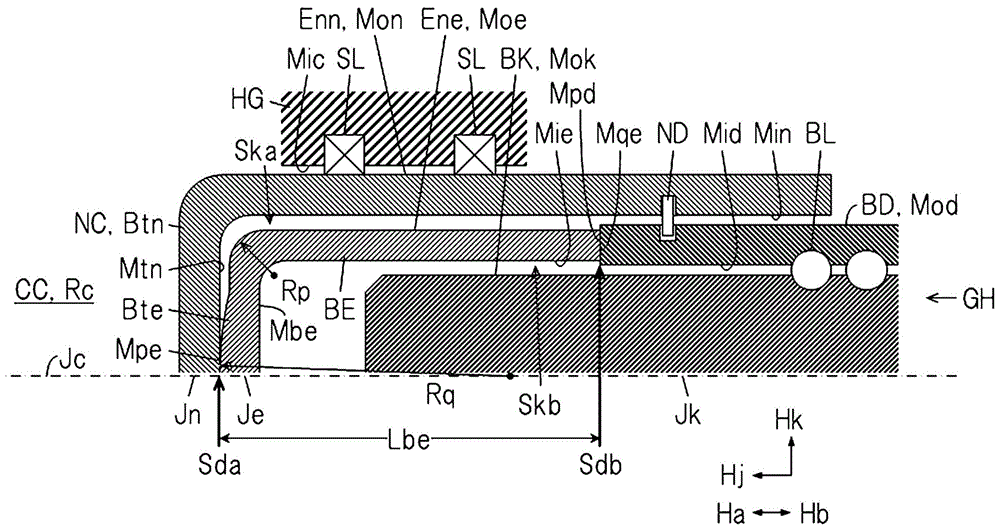

Representative figure
Abstract
液压产生装置（PS）具备：电动马达（MT），输出旋转动力（Tm）；转换机构（GH），将向旋转部件（BK）输入的上述旋转动力（Tm）作为直动部件（BD）的直线动力（Fn）输出；活塞（NC），插入于缸（CC），通过上述直线动力（Fn）进行移动而增加上述缸（CC）的液压（Pc）；以及中间部件（BE），位于上述活塞（NC）与上述直动部件（BD）之间。而且，上述中间部件（BE）的按压面（Mpe）能够相对于上述活塞（NC）的底面（Mtn、Mqn）进行滑动，上述中间部件（BE）的端面（Mqe）能够相对于上述直动部件（BD）的端面（Mpd）进行滑动。
Show English abstract
The hydraulic pressure generation device (PS) is provided with an electric Motor (MT) that outputs rotational power (Tm), a conversion mechanism (GH) that outputs the rotational power (Tm) that is input to a rotary member (BK) as linear power (Fn) of a linear motion member (BD), a piston (NC) that is inserted into a cylinder (CC) and that moves by the linear power (Fn) to increase the hydraulic pressure (Pc) of the cylinder (CC), and an intermediate member (BE) that is positioned between the piston (NC) and the linear motion member (BD). The pressing surface (Mpe) of the intermediate member (BE) is slidable with respect to the bottom surfaces (Mtn, mqn) of the piston (NC), and the end surface (Mqe) of the intermediate member (BE) is slidable with respect to the end surface (Mpd) of the linear motion member (BD).
Document
- Publication country
- CN
- Publication kind
- A
- Gazette
- 42-0502
- Grant length (yrs)
- 20
- Patent type
- 8
- Publication type
- 1
- Original language
- zh
Stats
- Total pages
- 21
- Drawing sheets
- 4
- Description ¶
- 15
