一种线控制动的踏板模拟器装置
Brake-by-wire pedal simulator device
- Publication number
- 121316786
- Publication date
- 2026-01-13
- Application number
- 202511797523.8
- Application date
- 2025-12-02
- First applicant
- 苏州泽澎电子有限公司
- First inventor
- 付志康
- Claims
- 10
- Independent claims
- 1
- Figures
- 6
- Inventors
- 3

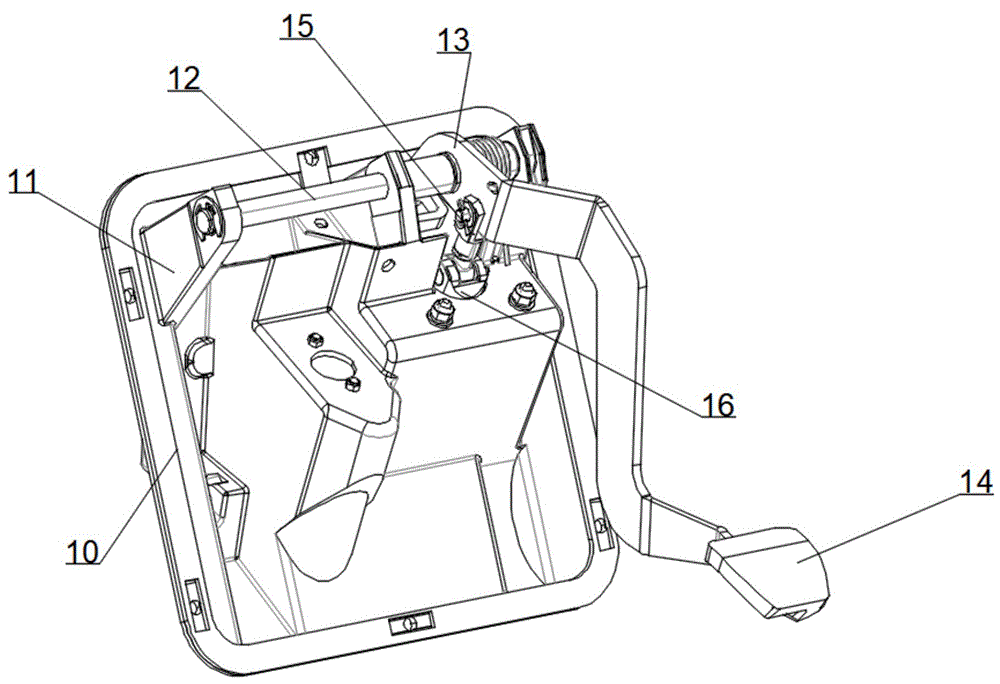

Representative figure
Abstract
本发明公开了一种线控制动的踏板模拟器装置，涉及踏板制动领域，包括外机壳与制动柄，制动柄的下端连接有伴随踩踏行程增加逐渐提高阻尼力的力滞组件，力滞组件包括外罩与弹簧座，弹簧座的内腔中安装有上弹簧柱，弹簧座上端固定连接有连接部，连接部铰接在制动柄上，弹簧座的下端设置有上力滞块与下力滞块，上力滞块与下力滞块与外罩的内腔侧壁之间滑动连接，本发明通过楔形力滞结构，精准模拟了传统制动系统的脚感，为驾驶员提供了熟悉且可靠的踏板反馈，同时结构紧凑，具有极强的互换性与适配性，能直接替换传统真空助力器，有效降低了整车布置难度与制造成本，实现了性能、安全与经济效益的统一。
Show English abstract
The invention discloses a brake-by-wire pedal simulator device, which relates to the field of pedal braking and comprises an outer shell and a brake handle, wherein the lower end of the brake handle is connected with a force hysteresis component which gradually improves damping force along with the increase of a stepping stroke, the force hysteresis component comprises an outer cover and a spring seat, an upper spring column is arranged in an inner cavity of the spring seat, the upper end of the spring seat is fixedly connected with a connecting part, the connecting part is hinged on the brake handle, the lower end of the spring seat is provided with an upper force hysteresis block and a lower force hysteresis block, and the upper force hysteresis block and the lower force hysteresis block are in sliding connection with the inner cavity side wall of the outer cover.
Document
- Publication country
- CN
- Publication kind
- A
- Gazette
- 42-0301
- Grant length (yrs)
- 20
- Patent type
- 1
- Publication type
- 1
- Original language
- zh
Stats
- Total pages
- 13
- Drawing sheets
- 6
- Description ¶
- 5
