CN2026120840571B·GrantB60T8/1761Status: 10

越野车辆陡坡缓降防抱死控制系统及方法

Anti-lock control system and method for abrupt slope descent of off-road vehicle

Publication number
120840571
Publication date
2026-01-13
Application number
202511373504.2
Application date
2025-09-25
First applicant
福州大学
First inventor
魏凌涛
Claims
9
Independent claims
2
Figures
4
Inventors
8

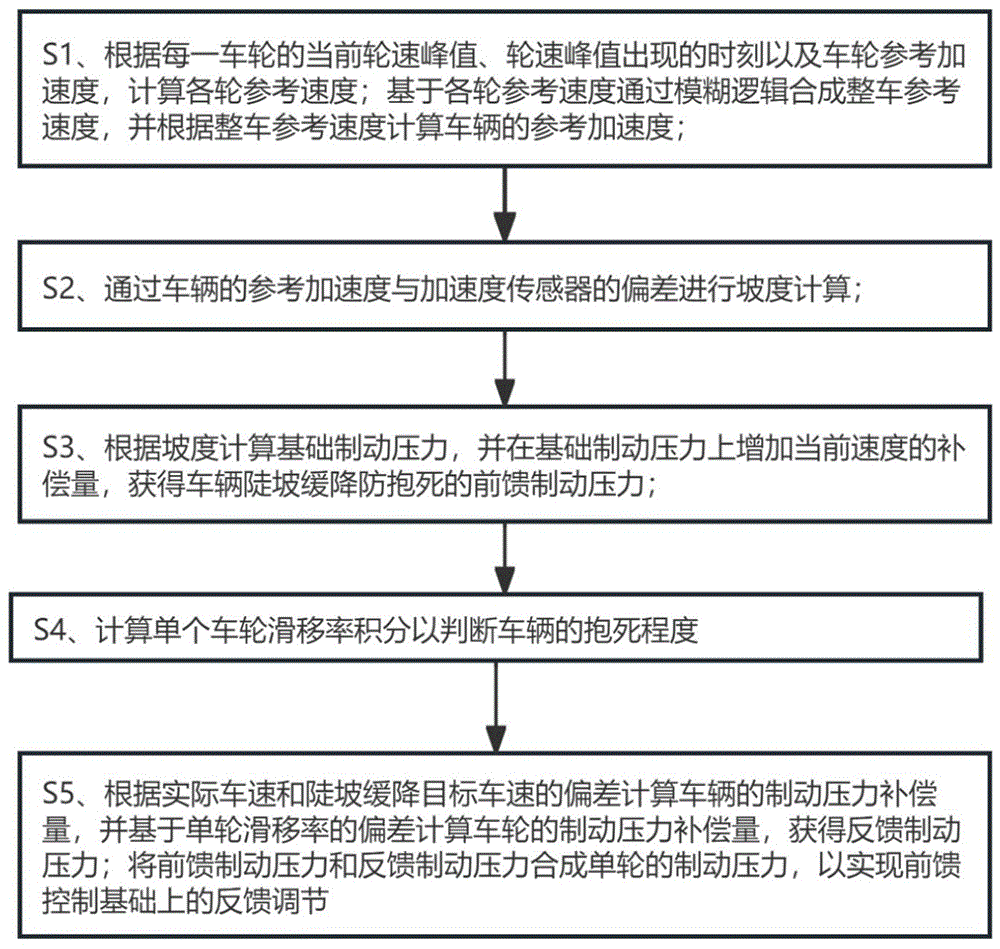

Representative figure for CN2026120840571B

Representative figure

Abstract

本发明提出越野车辆陡坡缓降防抱死控制系统及方法,所述方法包括:S1、根据每一车轮的当前轮速峰值、轮速峰值出现的时刻以及车轮参考加速度,计算各轮参考速度,并通过模糊逻辑合成整车参考速度,以计算车辆的参考加速度;S2、通过车辆的参考加速度与加速度传感器的偏差进行坡度计算;S3、根据坡度计算基础制动压力,并在基础制动压力上增加当前速度的补偿量,获得前馈制动压力;S4、计算单个车轮滑移率积分;S5、根据实际车速和陡坡缓降目标车速的偏差计算车辆的制动压力补偿量,并基于单轮滑移率的偏差计算车轮的制动压力补偿量,获得反馈制动压力;将前馈制动压力和反馈制动压力合成单轮的制动压力,以实现前馈控制基础上的反馈调节。

Show English abstract

S1, calculating the reference speed of each wheel according to the current wheel speed peak value of each wheel, the moment when the wheel speed peak value appears and the wheel reference acceleration, and synthesizing the whole vehicle reference speed through fuzzy logic to calculate the reference acceleration of the vehicle; S2, calculating a gradient through deviation of reference acceleration of the vehicle and an acceleration sensor, S3, calculating basic braking pressure according to the gradient, adding compensation quantity of current speed to the basic braking pressure to obtain feedforward braking pressure, S4, calculating single wheel slip rate integration, S5, calculating braking pressure compensation quantity of the vehicle according to deviation of actual vehicle speed and gradient descent target vehicle speed, calculating braking pressure compensation quantity of wheels based on deviation of single wheel slip rate to obtain feedback braking pressure, and combining the feedforward braking pressure and the feedback braking pressure into single wheel braking pressure to realize feedback adjustment based on feedforward control.

Document

Publication country
CN
Publication kind
B
Gazette
42-0301
Grant length (yrs)
20
Patent type
1
Publication type
4
Original language
zh

Stats

Total pages
22
Drawing sheets
3
Description ¶
12
