用于液压助力车辆制动装备的液压块
Hydraulic block for a hydraulic power-assisted vehicle brake system
- Publication number
- 116685509
- Publication date
- 2026-02-13
- Application number
- 202180082811.9
- Application date
- 2021-11-26
- First applicant
- 罗伯特.博世有限公司
- First inventor
- M·梅耶
- Claims
- 8
- Independent claims
- 2
- Figures
- 3
- Inventors
- 2
Representative figure
Abstract

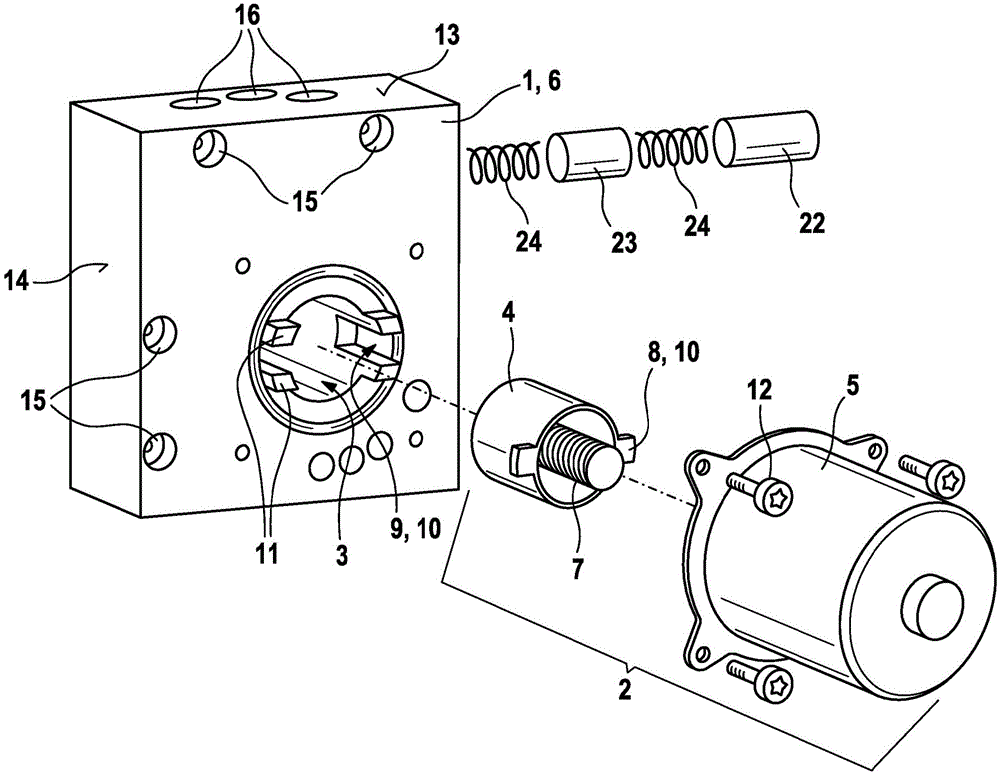

本发明提出了，构造一种用于液压机组的液压块(1)，以用于在液压助力车辆制动装备中进行制动压力生成和制动压力调节，所述液压块具有：在所述液压块(1)的大的侧部上将横向贯穿所述液压块(1)的助力缸孔(3)延长的伸出部、以及在所述液压块(1)的对置的大的侧部(6)上将助力制动压力生成器(2)的助力活塞(4)的防转动引导部(10)延长的伸出部(11)。
Show English abstract
The invention proposes to construct a hydraulic block (1) for a hydraulic power unit for brake pressure generation and brake pressure regulation in a hydraulic power-assisted vehicle brake system, comprising a projection extending transversely through a power cylinder bore (3) of the hydraulic block (1) on a large side of the hydraulic block (1) and a projection (11) extending an anti-rotation guide (10) of a power piston (4) of a power-assisted brake pressure generator (2) on an opposite large side (6) of the hydraulic block (1).
