泵装置
Pump device
- Publication number
- 116529133
- Publication date
- 2026-02-17
- Application number
- 202180080741.3
- Application date
- 2021-11-04
- First applicant
- 罗伯特.博世有限公司
- First inventor
- 坂本贵纪
- Claims
- 6
- Independent claims
- 1
- Figures
- 5
- Inventors
- 1

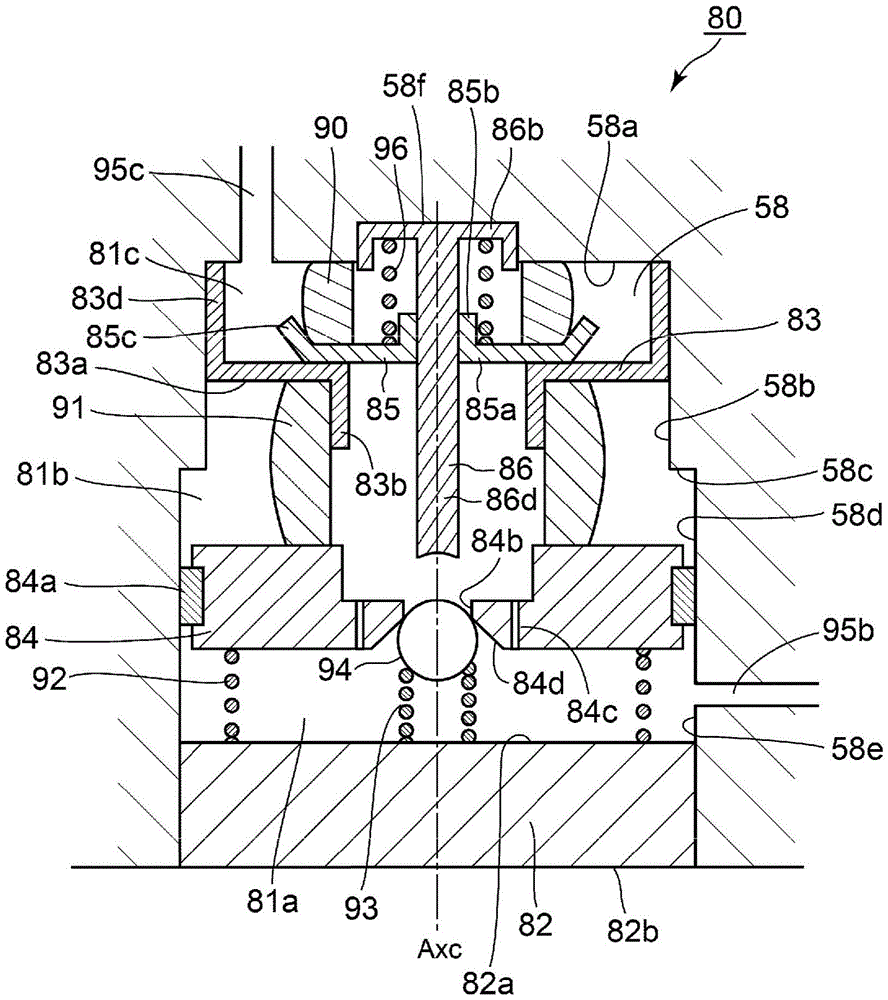

Representative figure
Abstract
本发明衰减泵的驱动时产生的制动液的脉动引起的噪音。配备于泵装置的脉动衰减部(80)具备将容纳室(58)分成上游侧区域和下游侧区域的固定部件(86)，所述固定部件(86)在中央部具有孔部(83b)。上游侧区域具备上游侧可动部件(84)、容纳流入开口侧弹性体(92)的流入开口侧阻尼部(81a)、容纳固定部件侧弹性体(91)的固定部件侧阻尼部(81c)。下游侧区域具备下游侧可动部件(85)、容纳流出开口侧弹性体(96)的流出开口侧阻尼部(81b)。上游侧可动部件(84)具备贯通孔(84b)，贯通孔(84b)具有能够被阀部件(94)封闭的座部(84d)，阀部件(94)构成为在上游侧可动部件(84)的移动时能够与圆柱部(86d)抵接。
Show English abstract
The invention attenuates noise caused by pulsation of brake fluid generated during driving of a pump. A pulsation damping section (80) provided in a pump device is provided with a fixing member (86) that divides a housing chamber (58) into an upstream region and a downstream region, and the fixing member (86) has a hole (83 b) in the center. The upstream region is provided with an upstream movable member (84), an inflow opening side damper portion (81 a) for accommodating an inflow opening side elastic body (92), and a fixed member side damper portion (81 c) for accommodating a fixed member side elastic body (91). The downstream region is provided with a downstream movable member (85) and an outflow opening side damper (81 b) for accommodating an outflow opening side elastic body (96). The upstream movable member (84) is provided with a through hole (84 b), the through hole (84 b) is provided with a seat (84 d) that can be closed by a valve member (94), and the valve member (94) is configured so as to be capable of abutting against the cylindrical portion (86 d) when the upstream movable member (84) moves.
Document
- Publication country
- CN
- Publication kind
- B
- Gazette
- 42-0801
- Grant length (yrs)
- 20
- Patent type
- 8
- Publication type
- 4
- Original language
- zh
Stats
- Total pages
- 18
- Drawing sheets
- 5
- Description ¶
- 10
