一种后桥模块总成
Rear axle module assembly
- Publication number
- 116039598
- Publication date
- 2026-01-02
- Application number
- 202211523472.6
- Application date
- 2022-11-30
- First applicant
- 浙江万安科技股份有限公司
- First inventor
- 陈锋
- Claims
- 6
- Independent claims
- 1
- Figures
- 6
- Inventors
- 8
Representative figure
Abstract

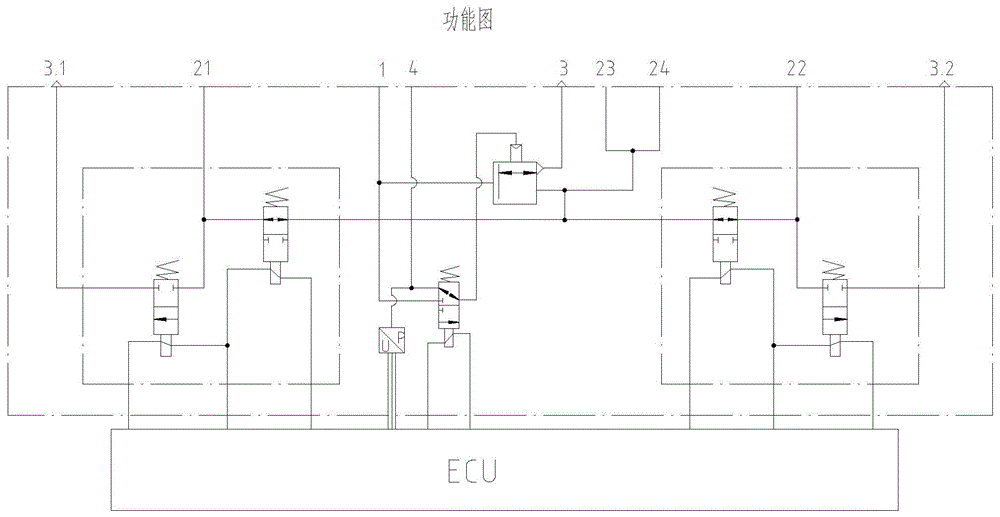

本发明提供了一种后桥模块总成，其集成有继动阀总成和ABS电磁阀总成，还包括有ASR阀、压力传感器、横摆角传感器和控制器(14)；总成上设置有控制气口(4)，控制气口(4)用于和气制动阀连接；总成上还设置有进气口(1)、出气口(21,22,23,24)以及排气口(3,31)；进气口(1)用于和贮气筒连接，出气口(21,22,23,24)用于和制动气室连接，排气口(3,31)和外界大气连通。该总成具有结构简单，成本低，轻量化等优点。
Show English abstract
The invention provides a rear axle module assembly which is integrated with a relay valve assembly and an ABS electromagnetic valve assembly, and further comprises an ASR valve, a pressure sensor, a yaw angle sensor and a controller (14), wherein a control air port (4) is arranged on the assembly, the control air port (4) is used for being connected with an air brake valve, an air inlet (1), air outlets (21, 22,23, 24) and air outlets (3, 31) are also arranged on the assembly, the air inlet (1) is used for being connected with an air reservoir, the air outlets (21, 22,23, 24) are used for being connected with a brake air chamber, and the air outlets (3, 31) are communicated with the outside atmosphere. The assembly has the advantages of simple structure, low cost, light weight and the like.
