CN2026115923758B·GrantB60T17/18Status: 10

制动系统及车辆

Braking system and vehicle

Publication number
115923758
Publication date
2026-01-27
Application number
202310014970.6
Application date
2023-01-03
First applicant
浙江吉利控股集团有限公司
First inventor
张超
Claims
9
Independent claims
2
Figures
5
Inventors
6

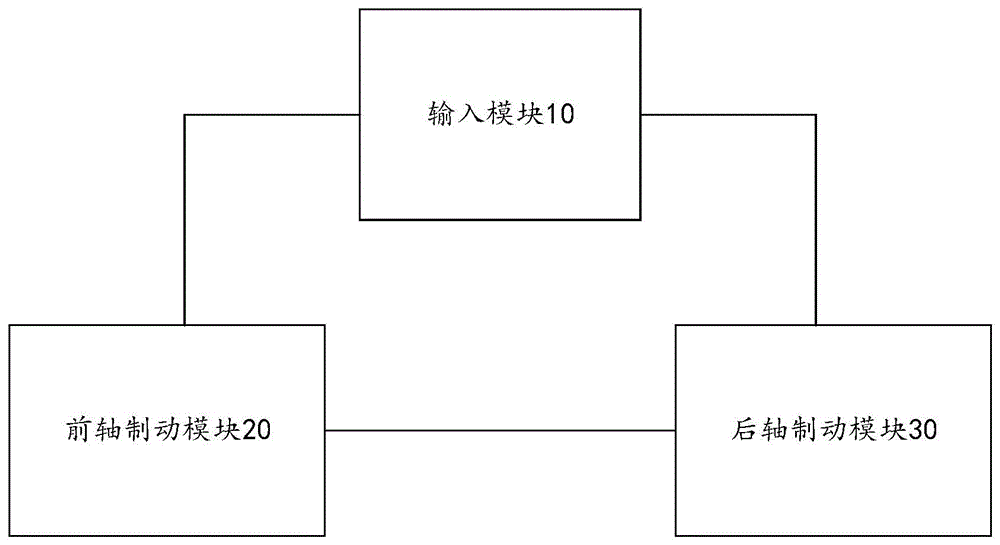

Representative figure for CN2026115923758B

Representative figure

Abstract

本发明公开了一种制动系统及车辆,该系统中的前轴制动模块和后轴制动模块均与输入模块连接,前轴制动模块与后轴制动模块之间建立有通讯连接;车辆上电后前轴制动模块发送前轴制动工作信号至所述后轴制动模块,后轴制动模块发送后轴制动工作信号至前轴制动模块,前轴制动模块与后轴制动模块互为备份制动模块。前轴制动模块在接收到的后轴制动工作信号为故障信号时,接替后轴制动模块来控制车辆后轴制动,后轴制动模块在接收到的前轴制动工作信号为故障信号时,接替前轴制动模块来控制车辆前轴制动,两个制动模块互为备份制动模块,在其中一个制动模块出现故障时,仍能根据制动信号进行有效的车辆制动,提高了制动系统的稳定性,提升了车辆安全性。

Show English abstract

The invention discloses a braking system and a vehicle, wherein a front shaft braking module and a rear shaft braking module in the system are connected with an input module, communication connection is established between the front shaft braking module and the rear shaft braking module, the front shaft braking module sends a front shaft braking working signal to the rear shaft braking module after the vehicle is electrified, the rear shaft braking module sends a rear shaft braking working signal to the front shaft braking module, and the front shaft braking module and the rear shaft braking module are backup braking modules. When the received back shaft braking working signal is a fault signal, the back shaft braking module is replaced to control the back shaft braking of the vehicle, when the received front shaft braking working signal is a fault signal, the back shaft braking module is replaced to control the front shaft braking of the vehicle, the two braking modules are backup braking modules, and when one braking module fails, the effective vehicle braking can be still carried out according to the braking signal, so that the stability of a braking system is improved, and the safety of the vehicle is improved.

Document

Publication country
CN
Publication kind
B
Gazette
42-0501
Grant length (yrs)
20
Patent type
1
Publication type
4
Original language
zh

Stats

Total pages
21
Drawing sheets
5
Description ¶
12
