车辆制动系统的压力阻尼装置
Pressure damping device for a vehicle brake system
- Publication number
- 115768666
- Publication date
- 2026-01-06
- Application number
- 202180048107.1
- Application date
- 2021-03-30
- First applicant
- 罗伯特.博世有限公司
- First inventor
- M·胡斯特
- Claims
- 10
- Independent claims
- 2
- Figures
- 4
- Inventors
- 3
Representative figure
Abstract

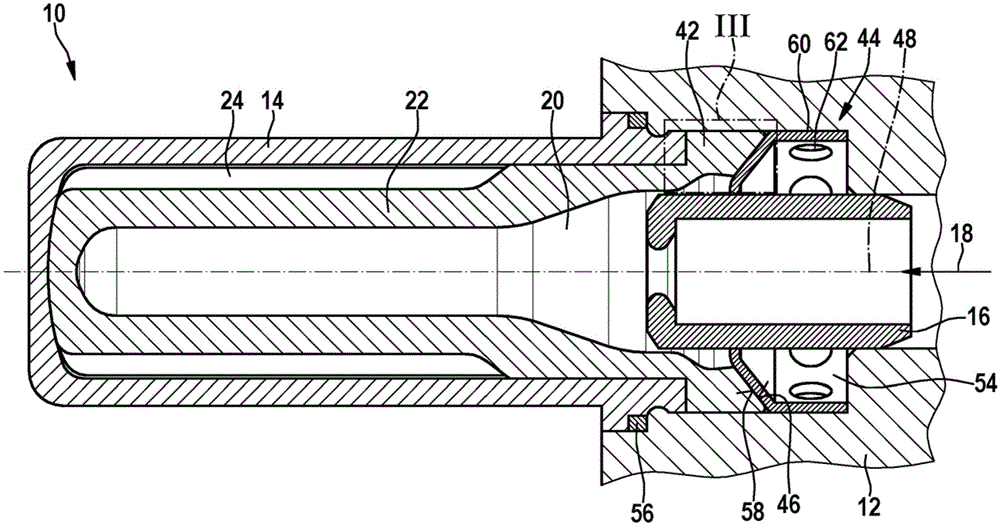

本发明涉及车辆制动系统的压力阻尼装置(10)，该压力阻尼装置具有：第一空间(20)，可为该第一空间施加液压压力；和第二空间(24)，其由阻尼器壳体(14)包围，并且在该第二空间中存在可压缩介质；以及分隔元件(22)，以用于分隔第一空间(20)与第二空间(24)。在此，设置有相对于纵向轴线(48)环形的支撑元件(44)，通过该支撑元件相对于纵向轴线(48)倾斜地、沿径向向外地并且沿轴向朝第二空间(24)的方向将分隔元件(22)压在阻尼器壳体(14)上。
Show English abstract
The invention relates to a pressure damping device (10) of a vehicle brake system, comprising a first space (20) to which hydraulic pressure can be applied, and a second space (24) which is enclosed by a damper housing (14) and in which a compressible medium is present, and a separating element (22) for separating the first space (20) from the second space (24). In this case, a support element (44) is provided which is annular with respect to the longitudinal axis (48) and by means of which the separating element (22) is pressed against the damper housing (14) obliquely, radially outwards with respect to the longitudinal axis (48) and axially in the direction of the second space (24).
